In the field of automotive repair, accurately diagnosing vehicle issues is both an art and a science. The evolution of vehicle technology has brought about complex systems that often present similar symptoms for different underlying causes. This complexity necessitates a shift from traditional “quick fix” approaches to a more comprehensive diagnostic process.

The importance of this approach was underscored by my recent experience with three vehicles—a 2019 Toyota Corolla, a 2017 Ford Explorer, and a 2019 Maxus Space—each of which presented multiple and cylinder-specific misfire problems. Despite the shared symptoms, the root causes were entirely different, demonstrating the need for technicians and engineers to thoroughly explore all possible causes before concluding a diagnosis.

Case Studies: Different Causes for Similar Symptoms

1. 2019 Toyota Corolla: The Corolla exhibited a cylinder-specific misfire that was eventually traced to a broken exhaust valve. This valve had pierced the piston in the affected cylinder. A compression test revealed a reduced pressure difference in this cylinder compared to the others, pointing to the mechanical nature of the problem. This issue could not have been diagnosed solely with electronic tools; but other test instruments coupled with detailed mechanical inspection.

2. 2017 Ford Explorer: The Explorer’s misfire was caused by a faulty Engine Control Unit (ECU). Standard diagnostic tools failed to detect this issue, as the ECU’s malfunction was not readily apparent through basic electronic diagnostics. It was only when an auto probe tester was employed that the ECU fault was accurately diagnosed. This case highlights the importance of using advanced diagnostic tools and not solely relying on initial readings from conventional devices.

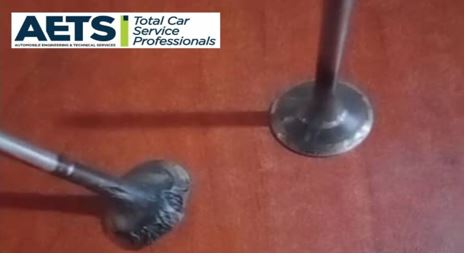

3. 2019 Maxus Space: The Maxus Space also experienced a cylinder-specific and multiple misfires, but this time due to a melted exhaust valve. An engine compression test showed zero pressure in the affected cylinder, indicating a severe mechanical failure. Unlike the Corolla, where the pressure was reduced but not absent, the Maxus’s issue required an entirely different repair strategy.

The Necessity of a Thorough Diagnostic Approach

The contrast between these cases underscores a critical lesson for automotive technicians and engineers: the same problem can have different causes, each requiring a distinct diagnostic and repair approach. Here are the key insights from these experiences:

1. Avoid Quick Fixes and Assumptions: In the past, engine misfires were often resolved by replacing spark plugs, fuel injectors, ignition coils, or securing loose harnesses. While these solutions might work for some cases, they can mask the true underlying issue in more complex situations. For instance, replacing the spark plugs in the Corolla would not have addressed the broken exhaust valve. It’s essential to avoid making assumptions based on previous experiences and to thoroughly investigate each case on its own merits.

2. Employ Comprehensive Diagnostic Tools: The failure of the Ford Explorer’s ECU highlights the limitations of relying solely on traditional diagnostic tools. In this instance, the issue was only detected with an auto probe tester, demonstrating the need for a broader range of diagnostic methods. Technicians must be equipped with and trained to use advanced tools that can uncover problems not immediately apparent through conventional diagnostics.

3. Integrate Mechanical and Electronic Diagnostics: Both the Corolla and the Maxus Space presented mechanical issues that required physical inspection and compression testing. This reinforces the need for a combined approach, integrating both electronic diagnostics and mechanical testing to get a complete picture of the vehicle’s health.

4. Tailor the Repair Strategy to the Diagnosis: Once the correct diagnosis is made, the repair strategy must be tailored to address the specific cause of the problem. For example, while the misfire in the Maxus Space and Corolla involved damaged exhaust valves, the extent of damage and resulting repairs differed significantly. Understanding these nuances is key to effective vehicle repair.

Conclusion: Emphasizing the Need for Diligent Diagnostics

The cases of the 2019 Toyota Corolla, 2017 Ford Explorer, and 2019 Maxus Space demonstrate the complexity and variability of modern vehicle diagnostics. Similar symptoms, such as engine misfires, can arise from vastly different causes, requiring technicians to move beyond quick fixes and instead embrace a methodical, comprehensive diagnostic process.

The importance of a thorough approach cannot be overstated. Technicians and engineers must employ every available diagnostic tool and method, remain open to multiple potential causes, and be willing to conduct in-depth investigations. By doing so, they can ensure accurate diagnoses, implement effective repairs, and ultimately deliver greater reliability and safety for their customers. In today’s automotive landscape, the ability to differentiate between causes for the same problem is not just a skill—it’s a necessity.

In automotive repair, diagnosing engine issues effectively requires a blend of skill and knowledge. As vehicle technology has advanced, it has introduced complex systems that can produce similar symptoms from different underlying causes. This complexity highlights the need to move away from traditional “quick fix” methods and adopt a more thorough diagnostic approach.

My recent work on three vehicles—a 2019 Toyota Corolla, a 2017 Ford Explorer, and a 2019 Maxus Space—each with multiple and cylinder-specific misfire issues, illustrates this point. While the symptoms were similar, the root causes varied significantly, underscoring the necessity for technicians and engineers to thoroughly investigate all potential causes before making conclusion.
